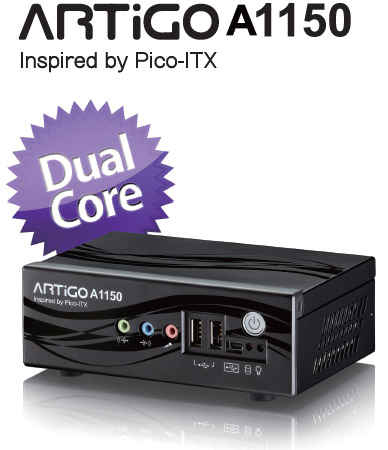

 “Artigo A1150 – PICO-ITX PC”


 Portable yet Powerful:

  • Powerful, energy ecient dual core processor
  • Immersive Full HD video & H.264 HD ash video decoding hardware acceleration
  • Space saving, palm size PC with 14.6 x 5.2 x 9.9 cm (5.7” x 2.0” x 3.9”) dimensions
  • Multiple I/Os: HDMI, Gigabit LAN , USB device port, 4 USB 2.0 ports, VGA
  • Optional WiFi networking and SD card readable
  • Supports Microsoft Windows 7 & Linux
Powered by VIA Pico-ITX Board
A full-featured x86 mainboard featuring the 64-bit VIA Eden™ X2 dual core processor, measuring a mere 10 cm x 7.2 cm (3.9” x 2.8”), the most powerful Pico-ITX platform ever.

VIA ARTiGO A1150 Pico-ITX Kit Specifications
Processor 1.0GHz VIA Eden™ X2

Chipset VIA VX900 Unied Digital IGP chipset
System Memory 1 x DDR3 1066 204-pin SDRAM SODIMM socket
VGA

Integrated VIA Chrome 9™ HD DX9 3D/2D video processor with MPEG-2,
WMV9/VC1, H.264 video decoding acceleration

Storage Interface

1 x SATA interface for 2.5" HDD or Flash SSD
1 x SD card reader slot (optional module)

Operating System Support Windows 7 / XP / XP Embedded, Linux
LAN Controller 1 x VIA VT6130 Gigabit Ethernet controller
LAN Port 1 x RJ-45 connector for Gigabit Ethernet connection
USB Ports 4 x USB 2.0 host ports, 1 x USB 2.0 device port
Audio Ports 1 x Line-out, 1 x Line-in, 1 x Mic-in
Display Ports 1 x VGA port, 1 x HDM port
System Indicator

1 x HDD active indicator
1 x Power on indicator

Wireless IEEE 80.2.11b/g/n (optional module)
Input Voltage DC 12V
Power Supply 100~240v input AC/DC adapter
Dimensions 146 x 52 x 99 mm / 5.7” x 2.0” x 3.9” (W x H x D)
Weight 0.6 kg / 1.32lbs (w/o HDD)

* The specification is subject to change without prior notice.
* Hard drive, compact flash, SD card reader module, wireless module, system memory and operating system must be purchased separately.

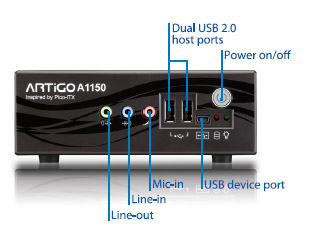

Front Panel Back Panel



Connectivity

HDMI port for HDMI TV

HDMI & VGA ports for dual screen

Optional SD card reader slot

USB device port for connecting other PC

The VIA ARTiGO A1150 Package
1 x ARTiGO A1150 (comprising SATA ribbon cable, chassis & VIA EPIA-P900 board)
1 x Setup CD disk (comprising software drivers and utilities)
4 x HDD screws
1 x Power cord
1 x AC/DC adaptor
1 x Installation guide
